Great Design:

A Perfect Way to have food all year round and/or become commercial

For

The system is ideally suited for use by entities, companies and organizations alike.

Purpose

Great start-up to commercial aquaponics, entrepreneurial endeavors, supporting small communities, and more.

Energy consumption : 1000 watts/hour

Water amount : 21000 ltrs

Water Consumption : 20 ltrs/day

Total Area :  200 sqm

Grow Area :  75 sqm


Fish Density : 80 Kg

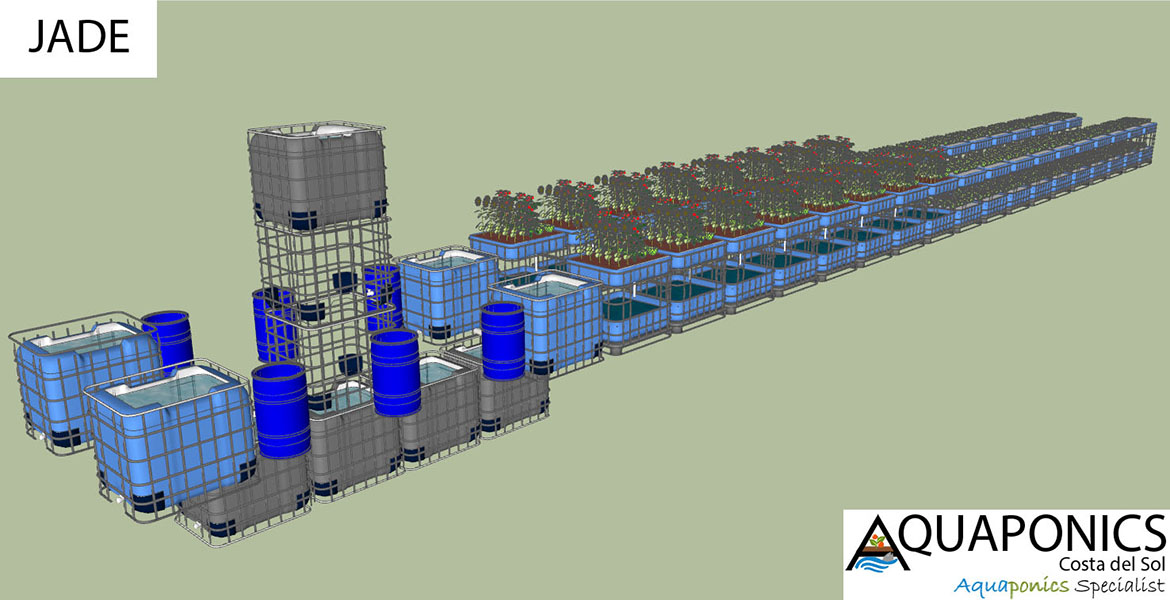

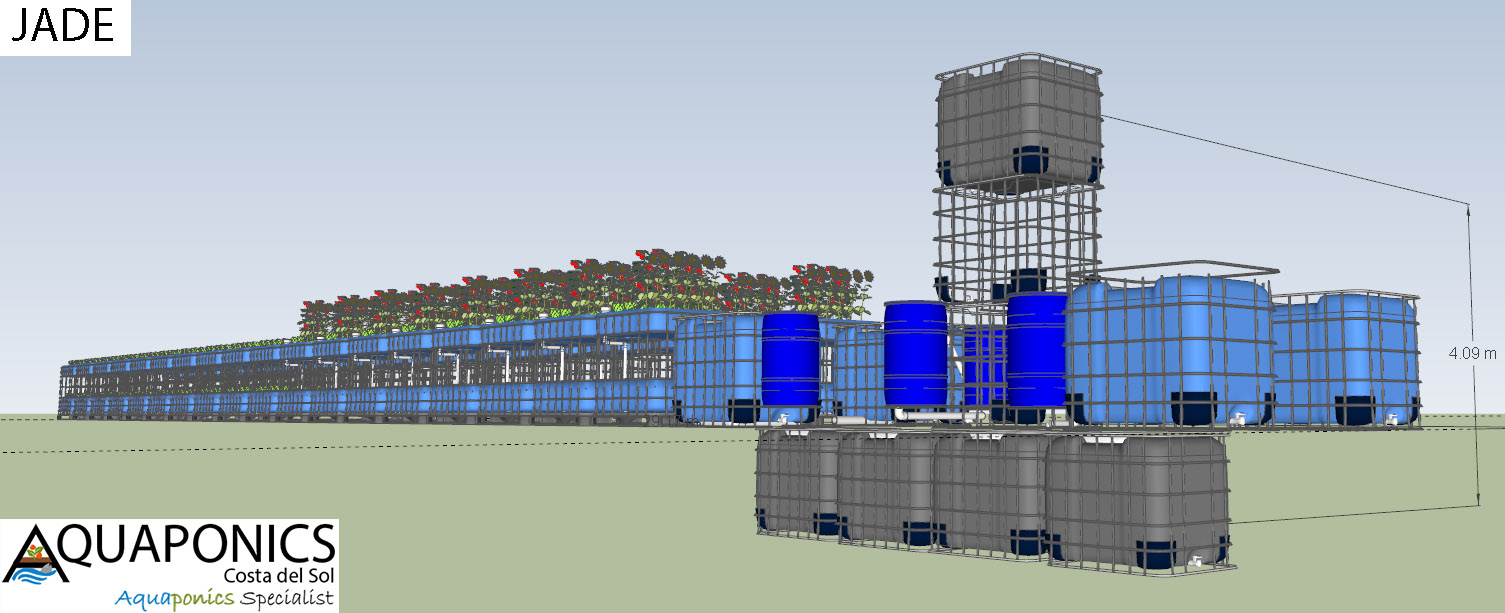

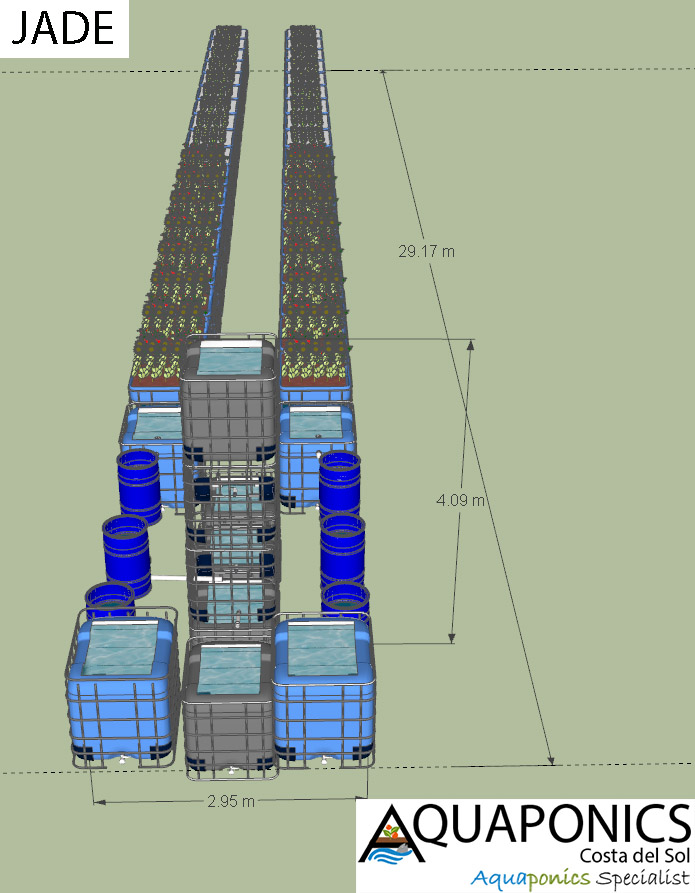

Let me introduce the DD Jade Aquaponic system, a carefully designed solution created to make the most of the space inside a 4m x 30m greenhouse. This system offers a fantastic opportunity for the extensive cultivation of both fish and plants, making it ideal for commercial purposes. It's highly adaptable, allowing for easy expansion by adding more rows or using larger greenhouse spaces. You can choose to use each production line independently or interconnect them for a unified operation.

The JADE System is not only versatile but also durable and easy to assemble, without the need for complex permits. It operates in a sustainable and eco-friendly manner, avoiding the use of harmful chemicals, making it an excellent choice for cultivating healthy and self-sufficient food for families and entire communities.

Beyond its self-consumption and commercial potential, the JADE System is a practical demonstration of aquaponics' effectiveness in addressing environmental and socio-economic challenges. It promotes sustainable agriculture by reducing the dependence on soil and water resources and lessening the strain on local aquatic ecosystems. This, in turn, fosters community resilience.

This system is not just an excellent starting point for communities and small businesses; it also offers a comprehensive understanding of fish and plant production on a larger scale. Its unique scalability allows for gradual expansion, enabling you to assess its suitability for your specific needs and products while planning each step of the process with care.

Features.

• Dimensions and weight

  • Forehead x Side x High x Deep: 50 m x 4 m x 4 m x 1,2 m
  • Empty weight: 3500 Kg
  • Weight in use: 25.000 Kg

• Structure

  • Tank: High-density and high molecular weight food-grade polyethylene.
  • Frame: Double-layer galvanized steel tubes.
  • Pallet: Galvanized steel.

• Characteristics

  • Certifications: BAM Federal Institute for Materials Research and Testing
  • Maximum content density: 1,9 (water)
  • Maximum Hydraulic Pressure: 100 Kpa

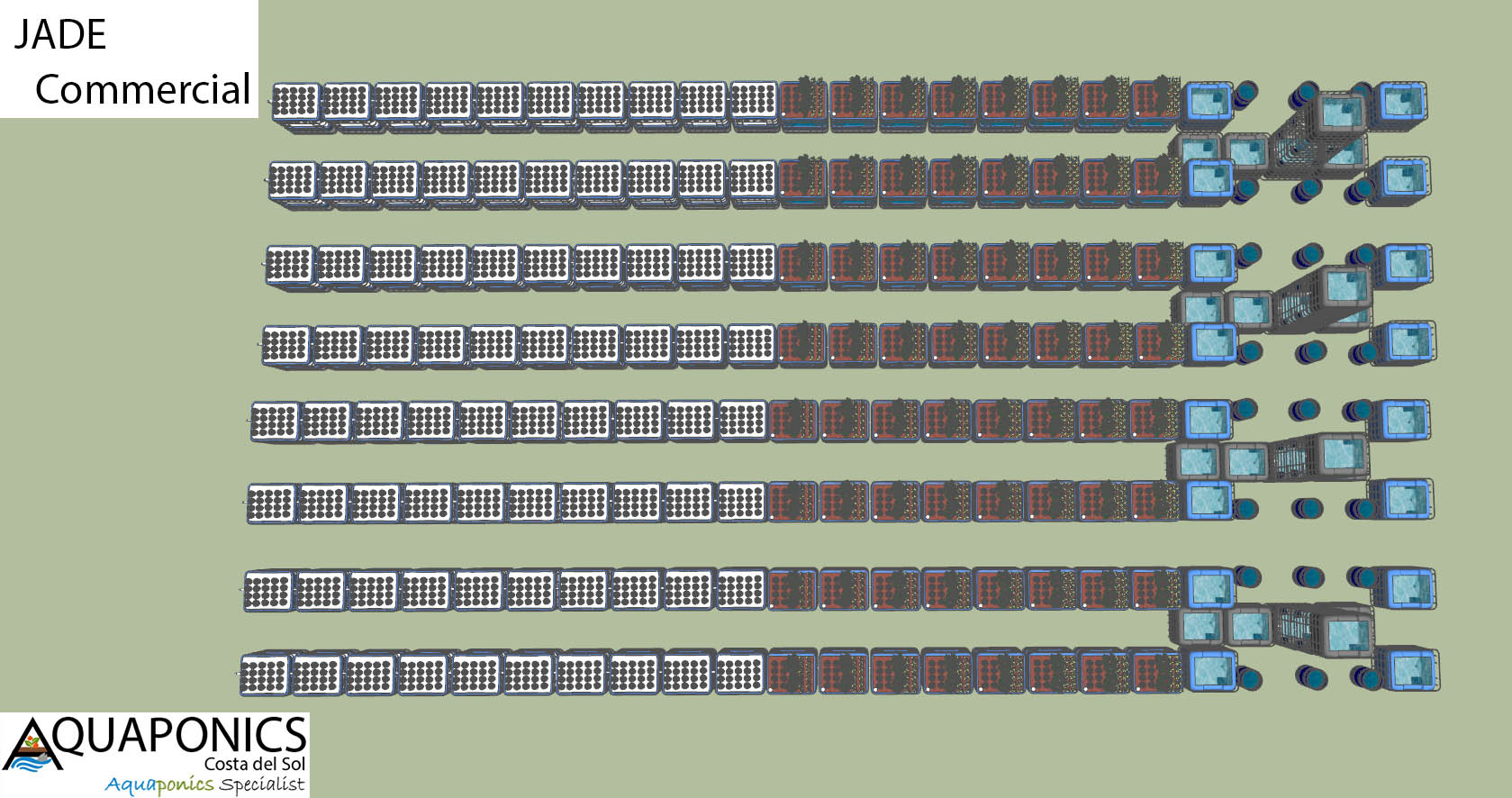

JADE scalable
